Tool quotation as easy as 1,2,3!

Systematic...automated...competitive...that is the key of Magics Tooling Expert, the innovative solution for tool analysis and quotation, designed to meet the demands of toolmakers in today's competitive and fast-paced tooling market. Speed and ease-of-use are combined into a powerful instrument.

Drastically improve your hit rate by offering your customers the most convincing, detailed and documented quotes! Use the analysis tool to illustrate and explain your determined price to your customers. They too will see that your quote is the most accurate one.

The highly advanced and automatic functionality of Magics Tooling Expert reduces the effort of quoting tools to a minimum! Tool quotation becomes as easy as 1, 2, 3!

1. Quickly gain in-depth understanding of a 3D CAD file and its tool
2. Set consistent prices without much effort
3. Automatically generate convincing quotes

1. Quickly gain in-depth understanding of a 3D CAD file and its tool

Analyse your 3D CAD and STL files to gain insight into the complexity of the tool to be designed and produced. Magics Tooling Expert visualises problem areas automatically! Immediately you can see the elements that determine both the complexity and cost of the tool.
Magics Tooling Expert offers:

Orientation tools:
Magics Tooling Expert provides you with excellent tools to easily orient the part in the best mould opening direction.

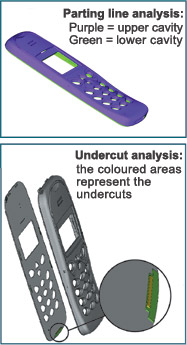

Parting Line analysis:
You get a preview of the complexity of the parting line and of the number of land surfaces.

Undercut analysis:
In seconds you see whether undercuts are present and where slides and inserts are required.

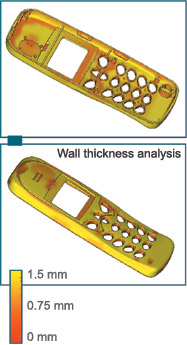

Wall Thickness analysis:
Magics Tooling Expert uses intelligent and powerful algorithms based on colour codes to visualise the wall thickness.

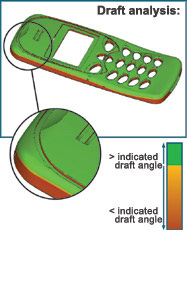

Draft analysis:
Determine if draft needs to be applied during the tool design.

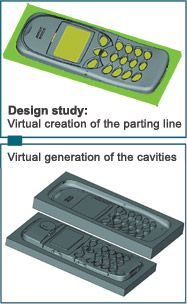

Design Study:
Virtually design the tool! The software automatically generates 3D images of the complete tool: parting line, parting planes, core and cavity. Besides this, advanced capabilities to adapt the tool design are available.

2. Set consistent prices without much effort

The information from the analysis phase allows for easy parameter determination concerning the product shape, number and type of slides needed, complexity of the parting plane, minimal wall thickness, ejection mechanism, the material, injection pressure, the finishing etc.
Magics Tooling Expert provides you with an effective means to calculate the costs in a systematic manner. This results in consistent and reliable price estimation! Moreover, compared to the traditional way of quoting, working with the Tooling Expert is faster and easier.

3. Automatically generate convincing quotes

At any time during the analysis phase you can click the camera icon in the main toolbar to make snapshots to illustrate the quote. The enhanced document generation facilities provide you with a well-documented quote complete with images of the different analyses and problem areas. Customise Microsoft Word templates for your business as you have the liberty to define your own page set-up.
Magics Tooling Expert is the ideal tool to explain the complexity of a tool and its pricing to your customers!



Eliminate unpleasant - and cost-increasing - surprises during the actual tool design! For you will understand the problem areas and difficulties even before you start designing the mould.
On top of this, you can easily adapt the existing tool quotation to small design changes. Starting the quoting process again from scratch will not be necessary!
In other words, Magics Tooling Expert saves you both time and money!
