MAGICS FILLS THE GAPS IN YOUR RP PROCESS
Rapid Prototyping isn't just about owning a machine that can build parts quickly. It includes other elements, beginning with quoting a job, through data conversion and work preparation, all the way to quality control. All of these elements have to work in harmony to achieve a common goal: speed without sacrificing accuracy. Over the past few years, Magics RP has proven to the rapid prototyping world that it's an indispensable software tool for achieving that goal. Magics RP's powerful, efficient 3D tools enable you to deliver high quality prototypes with the shortest lead times. At the same time, Magics provides you and your clients with full documentation of the process.
Magics simplifies time-consuming data conversion
Magics calculates a comprehensive quote in seconds
Magics cuts back repair time for STL files
Magics allows process-related design changes
Magics speeds up specialized RP work preparation
Magics offers detailed documentation
Magics provides unmatched quality control
Magics simplifies time-consuming data conversion

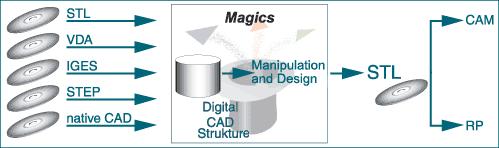

Magics RP software can import most standard 3D formats - STL, VDA, IGES, STEP, VRML - and native CAD formats like UG/Parasolid and Catia. Growing numbers of customers also work with scanned data. To meet their needs, Magics offers the import and export of point clouds.
The imported files are converted to a digital CAD structure according to a user-defined accuracy.
The conversion process includes correction of common errors. The resulting STL file is ready to produce prototypes or tools without the need for further conversion. Magics RP is a must for every RP service bureau. You can't afford to lose time in conversion. Neither can your clients. Magics RP allows you to get right to work on a file with a very high triangulation quality.
To further improve communication between you and your customers, Materialise has developed a compression format called MGX. MGX shrinks an STL to about 1/20 of its original size. The MGX format thus saves space and speeds up distribution, download and transfer of STL files. With Magics, you can easily zip STL files and unzip MGX files.
Magics calculates a comprehensive quote in seconds
Build cost of a part automatically calculated by Magics.
Magics has excellent 3D visualization capabilities, instantly giving you a clear picture of a part's intricacies. With Magics' build time estimator, you can assess costs and plan machine capacity. Simply input the necessary dependencies, such as volume or surface, and you can define the parameters for calculating the cost of a part.
You won't believe how quickly Magics calculates the build cost. Within minutes after receiving his file, you'll be able to provide your client with an accurate quote. Magics is the ideal solution for turning around timely quotes!
Magics cuts back repair time for STL files
The defective file of this drilling machine was quickly corrected using Magics'
repairing functions.
Since CAD systems don't always export clean STL files, correction may be needed before they can be sent to an RP machine. With Magics, you'll tell the difference immediately between a good STL file and a defective one.
Magics is packed with features that enable you to interact directly on defective files, correcting errors in a matter of minutes. Its unique, automated tools are easy to learn. Use them for inverting triangles whose normals are incorrectly pointed, for stitching bad edges, filling holes, removing identical triangles, trimming surfaces, merging shells, and for Boolean operations.
Let Magics' powerful and automated functions boost your productivity while leaving full control over the individual triangles in your hands.
Magics allows process-related design changes
Looking for a simple way to accelerate your time to market? Use Magics to make direct process-related design changes! Stop wasting time with iterations between the CAD and RP departments every time the RP process dictates a design change. Instead, let Magics RP put the "rapid" back into rapid prototyping!
Magics includes several critical features specifically developed to optimize the process. For example, compensate for parts that need to be milled or painted after production by offsetting them. You can hollow parts to avoid deformation as a result of internal stresses and to save on material. Pinpoint the best way to cut large parts to fit on the RP machine, ensuring a strong bond when they're glued together later. Put indicators into position to determine the best possible location for a seam, and for simpler assembly. You can even label parts so they're easier to identify.
Other features are also aimed at the RP process: removing holes, Boolean operations, triangle reduction, triangle smoothing and aligning. These quick and "smart" functions are easy to master, and will help you take control of manipulating your STL files!
Large parts can easily be cut (straight or
advanced) to fit on the RP machine.
Save on material by hollowing the part.
Adding a label to the part simplifies the identification of very similar parts.
Magics speeds up specialized RP work preparation
Magics can save you time on your data pre-processing. Now you can nest parts with a single mouse-click. Magics'
powerful nesting function quickly arranges the parts on the smallest possible area. You can base nesting calculations on the bounding boxes as well as on true part geometry. It is impossible to reach the same result in such a short time while manually nesting.
Magics slices the STL file into the desired format in just a few seconds.
Magics takes care of the final step too, automatically generating the necessary supports before sending the STL to a stereolithography machine.
Magics' intelligent features are the perfect way to fulfill the demands of RP work preparation.
The 'Slice' and 'Support Generation' modules
enable you to quickly prepare the STL file for
production on an RP machine.
Magics' geometry based nesting saves you
space on the platform as well as time.
Magics offers detailed documentation
Print all the information you consider relevant! Not only does Magics prepare data for RP machines, it also lets you create documents that can guide the overall product flow, from quotation through production to quality control.
Define your own page setup with Microsoft Word templates designed to fit your need for a variety of reports. All you do is indicate the information you want to report: e.g. dimensions, build time estimate, cost estimate, measurements, name of the person who worked on the file or different views of the part. The templates give you the freedom to document a part with the information you choose to include.
Once you have defined the template, Magics uses the part information to generate specifications automatically into a document. Use these
standardized documents to provide a client with a quote, to guide the finishing on the shop floor, and for quality control!
Magics provides unmatched quality control
The Magics RapidFit module offers a fast, unique solution for quality control. Create fixtures in three easy steps: position the part on the reference plate, indicate on the part the contact points that need fixtures, and Magics will design the fixtures automatically, based on your
customized settings. The fixtures can be built on an RP machine simultaneously with the part.
Use fixtures for first prototype and pre-series control, as CMM fixtures, as an assembly tool, as a post-polymerization tool and as machining fixtures.
